High-power electronics demand much more from printed circuit boards than standard gadgets do. When your design needs to safely handle tens or even hundreds of amperes, the ordinary 1 oz copper PCB isn’t just inadequate; it’s a liability.

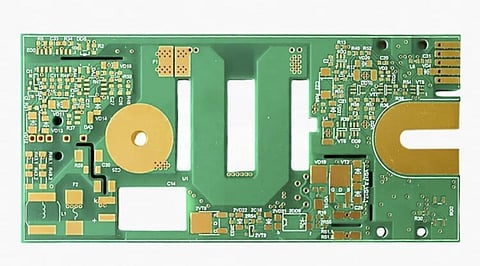

Heavy copper PCBs—defined by the IPC-2221 standard as any board with more than 3 oz/ft² of copper per layer—have become the backbone of high-current devices. From electric vehicle chargers to industrial motor drives, these aren't a luxury item. They are the critical infrastructure that keeps current flowing without burning down the enclosure.
You can’t cheat physics. Electricity flows like water, and high current is a high-volume flood. If you force that flood through a narrow pipe, you get massive resistance. In a PCB trace, that resistance manifests instantly as heat.
It comes down to simple I²R losses (Joule heating). Pushing 30–50 A through a standard 1 oz trace turns your conductor into a heater. You face voltage drops, thermal stress, and eventually, delamination.
Most of us engineers reference ampacity, which is strictly tied to the cross-sectional area of the copper. A recent IEEE power electronics study on a 200 kW inverter design kept trace current density below ~5 A/mm² specifically to prevent overheating. To hit that safety margin, you either need a trace that is impossibly wide, or you need to go vertical with thicker copper.
The difference in performance is staggering. Let’s run the numbers using IPC-2221A formulas:
A 0.25 inch (6.35 mm) trace on a 1 oz PCB handles roughly 34 A with a 20 °C rise.
That same trace in 4 oz copper carries almost 94 A under the same conditions.
You nearly triple the current capacity just by quadrupling the thickness. Heavy copper boards effectively upsize the wiring on the PCB, much like an electrician chooses a thicker-gauge wire for a mains connection.
High-current PCBs are likely already running the critical infrastructure you manage.
An EV fast charger pumps 50 A+ DC into a vehicle, while the on-board inverter drives hundreds of amps into the motor. A standard board here would be an immediate thermal failure. According to analysis in International Power Electronics, EV units commonly employ 10–20 oz copper layers. These aren't just carrying current; they act as heat spreaders, eliminating the need for bulky wire harnesses that add weight and failure points.
Solar inverters sit in hot outdoor enclosures, converting 50–100 A of DC input. IPC guidance indicates that 4–8 oz copper PCBs are required here to maintain efficient power transmission. In battery management systems (BMS), the stakes are even higher. During a rapid discharge surge, a standard BMS board would see its traces vaporize. Heavy copper allows these boards to handle massive surge currents without thermal runaway.
On the factory floor, a CNC servo drive might push 30 A continuously. Vibration is the enemy here. A 6 oz or 8 oz copper PCB runs cooler and withstands mechanical stress better than a thin board. Engineers often use heavy copper to keep the high current on a single layer rather than splitting it across multiple thin layers—a practice that simplifies the design and improves reliability.
You might assume a heavy copper PCB is just a standard board with thicker foil. That assumption destroys project budgets. Heavy copper PCB manufacturing is a specialized discipline that fights against the standard laws of etching and plating. Most commodity fabrication houses simply cannot handle the variables.
If the process drifts, you get boards that pass electrical testing but fail in the field. Here is what happens behind the scenes.
Fabricators don't just buy thick foil; they build it up via electroplating. Here, the physics of electroplating works against uniformity. Electrical current naturally concentrates at the edges of a panel. If not controlled, you get the "edge effect," where traces on the outside are thick, but the center of the board is dangerously thin. One case study showed edge copper was 35% thicker than the center using standard methods.
This is where the capability gap widens. Specialized partners like PCBAIR utilize advanced pulse-reverse plating and physical edge shields to force the current to the center of the panel. This brings variation down from ~35% to a tight ±8%. If your vendor isn't using continuous thickness monitoring (XRF), you are likely buying a board with weak spots in the center.
When you etch a thick layer of copper, the chemical needs time to cut through to the bottom. During that time, the acid also eats sideways. This is called undercut. Without compensation, a 10 oz trace becomes trapezoidal—wide at the top, skinny at the bottom. This reduces the cross-sectional area and increases resistance.
Reliable fabrication requires specific design compensation (etch factors). For outer layers, you generally lose about 1 mil (0.025 mm) of width per ounce of copper due to side etch. A 4 oz trace needs to be designed wider on the artwork to finish at the correct size on the board.
Thick copper traces create deep vertical channels on the board surface. During lamination, the resin from the prepreg must flow into these gaps completely. If it doesn't, you get resin starvation, resulting in air voids. Air is a thermal insulator, meaning heat gets trapped right next to your high-current trace, leading to potential delamination or high-voltage arcing.
We need high-Tg prepregs with high resin content to fill these gaps. Furthermore, because thick copper exerts significant stress during thermal expansion (CTE mismatch), the bonding process must be precise. Top-tier fabricators use staged lamination cycles to ensure every nook is sealed without entrapping air.
While you choose heavy copper for the amps, you get paid back in reliability and system cost.
Thermal Efficiency: The copper acts as an embedded heatsink. When combined with thermal vias, heavy copper improves thermal efficiency by 30–50% compared to standard boards. You can often delete external heatsinks because the board itself dissipates the load.
Mechanical Armor: Thick copper is like rebar for your electronics. It resists peeling and flexing. An Epec engineering study showed that plating just 2 oz of extra copper into via holes reduced thermal cycle failure rates from ~32% to near 0%.
System Cost Reduction: This sounds counter-intuitive, but heavy copper saves money. By using a robust PCB, you can eliminate manual busbars, heavy cables, and screw terminals. Consolidating power distribution onto the board reduces assembly labor and parts count. You aren't just buying a board; you're replacing a wiring harness.
Heavy copper PCBs aren't just about carrying more current. They are a structural and thermal management strategy rolled into one. They turn the PCB into a chassis, a heatsink, and a power distribution network.
But they demand respect. You cannot simply send a heavy copper file to a quick-turn prototype shop and hope for the best. The engineering required to plate, etch, and laminate these boards requires a partner who understands the constraints. When done right, however, these boards are the insurance policy your high-power system needs to run cool and stay online.
