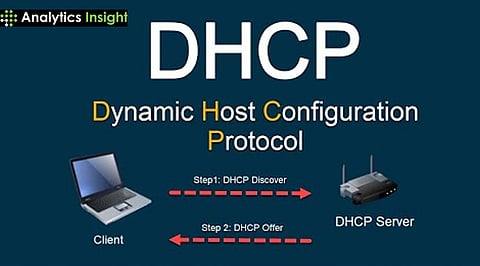

Dynamic Host Configuration Protocol (DHCP) is a client-server protocol that automatically assigns Internet Protocol (IP) addresses and related network configuration information (such as subnet mask, default gateway, and DNS servers) to devices (clients) on a TCP/IP network. It simplifies the process of managing IP addresses and reduces the need for manual configuration.
Dynamic DHCP: IP addresses are automatically assigned from a pool to devices as they join the network. When a device disconnects, its IP address is returned to the pool for reuse. With dynamic DHCP, a client doesn't own the IP address but leases it for a period. Each time a device is powered up, it communicates with the DHCP server to lease an IP address.
Static DHCP (DHCP Reservation): Specific devices are always assigned the same IP address. This is useful for devices like servers or printers that require a permanent address. It is also known as manual allocation, fixed address allocation, or MAC/IP address binding.
Manual Allocation: An administrator manually assigns IP addresses, but DHCP is still used to track and manage these addresses.
Automatic Allocation: The DHCP server permanently assigns an IP address to a requesting client from a range defined by an administrator. The DHCP server keeps a table of past IP address assignments, so that it can preferentially assign to a client the same IP address that the client previously had.
Relay Agent: In larger networks with multiple subnets, a relay agent forwards DHCP requests between subnets, ensuring that devices in different parts of the network can still get IP addresses from the central DHCP server.
Automation: DHCP automates the assignment of IP addresses, so you don’t need to manually configure each device. When a device connects to the network, DHCP automatically assigns it an IP address.
Reduces Errors: DHCP avoids errors like duplicate IP addresses, which can cause network problems. By centrally managing IP address allocation, DHCP prevents conflicts and ensures smooth communication.
Efficient IP Use: DHCP ensures IP addresses are reused when they’re no longer needed, keeping things efficient. IP addresses are dynamically leased rather than permanently assigned, and addresses no longer in use are automatically returned to the pool for reallocation.
Scalability: DHCP scales effortlessly, whether it’s a few devices at home or hundreds in an office.
Centralized Management: With DHCP, you can manage IP addresses from one central location, making it easier to update network settings or make changes.
Mobility: DHCP assigns new IP addresses when devices are moved from place to place, so network administrators do not have to manually configure each device with a valid IP address or reconfigure the device with a new IP address if it moves to a new location on the network.
Automated IP Address Assignment: DHCP automatically assigns IP addresses to devices joining a network, eliminating the need for manual configuration. This ensures that each device receives the necessary IP address, subnet mask, default gateway, and DNS server information to communicate on the network.
Temporary IP Addresses: DHCP leases IP addresses for a specific period. Once the lease expires, the IP address is returned to the pool and can be reassigned to another device.
Managing IP Addresses in Large Networks: DHCP is useful in networks with many devices, such as corporate offices or educational institutions, where manually assigning IP addresses would be impractical.
Supporting Mobile Devices: DHCP is ideal for networks that support wireless devices because IP addresses are automatically assigned as devices connect.
Centralized Network Management: DHCP allows network administrators to manage IP addresses and other network settings from a central server, simplifying network administration.
Preventing IP Address Conflicts: DHCP prevents IP address conflicts by ensuring that each device on the network has a unique IP address.
Guest Networks: DHCP is useful for guest Wi-Fi networks, where visitors can automatically obtain IP addresses without manual configuration or compromising the security of the internal network.
Simplifying Network Changes: DHCP makes it easy to change network settings, such as DNS server addresses or default gateways, by updating the DHCP server configuration. The changes are automatically propagated to all devices when they renew their IP address leases.
A DHCP relay agent is a host that forwards DHCP packets between clients and servers when they are not on the same physical subnet. Relay agents are used to forward requests and replies between clients and servers. DHCP relay agent can be configured using the IP helper-address command.
APIPA (Automatic Private IP Addressing) allows DHCP clients to automatically self-configure an IP address and subnet mask when a DHCP server is not available. A client uses the self-configured IP address until a DHCP server becomes available.
The IP address range for APIPA is 169.254.0.1 through 169.254.255.254. The client also configures itself with a default Class B subnet mask of 255.255.0.0.
A DHCP decline message is sent by a client to the server, indicating that the network address is already in use (already assigned to another device).
A DHCPNAK message is sent by the server to the client if the server is unable to satisfy the DHCPREQUEST message, such as if the requested network address has already been allocated to another device. It can also be sent if the client's notion of the network address is incorrect (client has moved to a new subnet) or the client's lease has expired.
The DHCP server assigns IP settings to hosts for specific periods (the lease time). When the lease expires, the server can reallocate the IP address to another device.
