For independent diesel technicians, small repair shops, and fleet managers, selecting the right diagnostic equipment often comes down to finding the right balance between features and cost. While basic code readers can offer useful information about fault codes, they may lack the comprehensive coverage and advanced functions needed for modern heavy-duty vehicles. On the other hand, professional OEM diagnostic systems provide extensive capabilities but often come with a much higher price tag.
The FOXWELL HD500 is positioned between these two options. It is a dedicated heavy-duty diagnostic scanner intended for use on trucks, buses, commercial vehicles, and other diesel-powered vehicles. The device includes features such as full-system diagnostics, live-data monitoring, DPF-related functions, injector testing, ABS service tools, and support for multiple heavy-duty communication protocols.

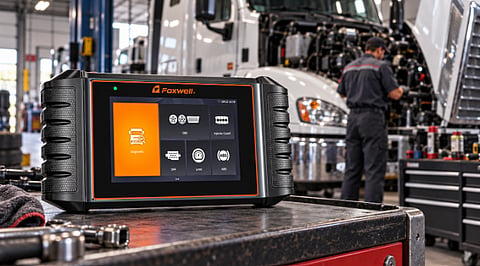

The FOXWELL HD500 is a portable diagnostic tablet designed for heavy-duty diesel applications. Unlike standard OBD-II code readers, the HD500 communicates with commercial-vehicle systems using protocols like J1939, J1708, and J1587. It also supports standard OBD-II and EOBD functions.
FOXWELL lists support for several major manufacturers and engine platforms, including Cummins, Caterpillar, Detroit, PACCAR, International, Hino, Volvo, and others. However, the level of compatibility and available features can vary depending on the specific vehicle, model year, ECU, and system setup. FOXWELL advises checking compatibility before making a purchase or performing a specific service.
One of the HD500’s main benefits over a basic code reader is its broader system coverage. Instead of focusing only on the engine ECU, the HD500 is designed to access multiple vehicle systems, provided the vehicle is compatible.
These systems can include:
Engine control systems
Transmission-related systems
ABS and braking systems
SRS systems
EPB and parking-brake systems
DPF and emissions-related systems
Other supported electronic control modules
DPF-related issues are among the most common reasons heavy-duty diesel vehicle owners and technicians use a diagnostic scanner. Excessive soot buildup can cause the DPF warning light to come on, regeneration failures, reduced engine power, or even trigger engine derate or torque-limiting conditions.
On compatible vehicles, the FOXWELL HD500 supports DPF-related diagnostic and maintenance functions, including forced DPF regeneration, DPF reset, and access to related live data.
When excessive soot builds up in the DPF, the HD500 can help read related fault codes and display data such as soot load, exhaust temperature, and differential pressure. This information can help technicians evaluate the DPF condition and determine whether regeneration is appropriate.
If the vehicle repeatedly fails to complete an automatic regeneration, technicians can use the HD500 to review related fault codes and live data, helping identify possible causes such as excessive soot buildup, abnormal temperature conditions, or sensor-related faults.
When DPF or emissions-system problems become more severe, some vehicles may experience reduced power, limited engine RPM, or torque derate. The HD500 can help identify related faults and, when conditions are met, perform supported DPF regeneration or reset functions.
When the vehicle cannot complete an automatic regeneration normally, the HD500 supports forced DPF regeneration on compatible vehicles. Before starting the procedure, technicians should check relevant fault codes and live data to make sure the vehicle meets the required regeneration conditions.
In addition, the HD500 supports several practical special functions for diesel-engine diagnostics. For example, when a vehicle experiences rough idle, engine vibration, loss of power, suspected misfires, or abnormal fuel consumption, the Injector Cutoff function can temporarily disable injectors one cylinder at a time. By observing changes in engine operation, technicians can help identify which cylinder may be abnormal and narrow down the cause before replacing parts unnecessarily.
Please note that the availability of DPF regeneration, Injector Cutoff, and other special functions can vary depending on the vehicle, engine, ECU, and model year. Compatibility should therefore be confirmed before performing a specific procedure.
Fault codes can tell you about a problem, but they don’t show how the system is behaving in real time. Live data is more helpful when a technician needs to determine whether a sensor or system parameter is working correctly.
The HD500 can display live sensor data and graph selected information. FOXWELL emphasizes the use of graphical displays to make sensor information easier to understand. Depending on the vehicle and the supported ECU, technicians can monitor various parameters such as
Engine RPM
Boost pressure
Fuel pressure
Exhaust-related parameters
Temperature readings
Sensor values
DPF-related data
Other ECU parameters
A key difference between passenger-car diagnostic tools and heavy-duty truck scanners is their communication compatibility. The HD500 supports commercial-vehicle protocols such as J1939, J1708, and J1587, along with other communication standards.
FOXWELL states the tool is intended for use with a range of heavy-duty vehicle and engine manufacturers. Nevertheless, technicians should always check for coverage for the specific vehicle they are working on before assuming an advanced function will be available.
The HD500 comes with multiple diagnostic connectors suitable for different vehicle types. The product information includes 6 & 9-pin, CAT 9-pin, CAT 14-pin and 16-pin adapters , along with additional adapters for specific Caterpillar applications.
FOXWELL also promotes Wi-Fi-based software updates. The manufacturer currently offers lifetime free online updates for the HD500. However, buyers should confirm the applicable update policy for the specific product version and market before purchasing.
The HD500 uses a touchscreen interface rather than the button and heavy truck scanner with DPF regen designs common on older diagnostic tools. Product and manual information identifies an Android-based operating environment and touchscreen interface.
That said, screen size and menu layout are subjective. Some user feedback suggests that text and certain graphing functions may not be as convenient in specific situations.
The HD500 is best suited for users who frequently work on commercial diesel vehicles but may not require a fully manufacturer-specific dealership diagnostic setup.
Independent Technicians
For independent technicians, the scanner provides access to standard heavy-duty diagnostic features without needing multiple basic scan tools.
Small and Medium-Sized Repair Shops
A smaller workshop might not have the budget or workload to justify buying several original equipment manufacturer (OEM) diagnostic systems. A multi-brand diesel diagnostic scanner like the HD500 can act as a practical alternative for usual repair tasks.
Fleet Managers
Fleet operators can use the diagnostic equipment to check fault codes and track vehicle issues before sending a truck to an external repair shop.
The main difference between the HD500 and a basic code reader is the level of detail and the range of supported functions.
A basic reader usually only shows and clears engine fault codes. The HD500 goes beyond that by providing full-system diagnostics on supported vehicles, live data, graphical displays, DPF functions, and other service features.
OEM diagnostic systems typically offer the deepest coverage for each manufacturer and specialized programming or setup tools.
However, they are often more expensive and may not be as convenient for shops working with multiple brands. The HD500 takes a different approach by offering broad coverage and commonly needed diagnostic and maintenance functions in one device.
For the target audience, the HD500 provides a mix of features that can be helpful in daily heavy-duty maintenance.
Its strongest practical areas include multi-brand support, heavy-duty communication protocols, full-system diagnostics, DPF functionality, live data monitoring, and multiple diagnostic adapters.
Pros
Designed specifically for heavy-duty and diesel applications
Supports J1939, J1708, and J1587 protocols
Offers full-system diagnostics on supported vehicles
Includes DPF regeneration and related features
Provides live data and graphical monitoring
Cons
Coverage may vary depending on the vehicle, ECU, and model year.
Not a full substitute for OEM diagnostic platforms
Some advanced features have manufacturer-specific limitations.
Buyers should check compatibility before purchasing.
The interface may require some time to learn for technicians not familiar with the system.
1. What is the FOXWELL HD500 used for?
The FOXWELL HD500 is a heavy-duty diagnostic scanner intended for trucks, buses, diesel vehicles, and other supported commercial uses.
2. Does the HD500 support DPF regeneration?
Yes. The HD500 supports DPF-related functions such as forced regeneration on supported vehicles. DPF capabilities can vary by vehicle and ECU, so compatibility must be confirmed before starting a regeneration process.
3. What protocols does the FOXWELL HD500 support?
The scanner supports heavy-duty protocols like J1939, J1708, and J1587, as well as several other automotive communication standards.
4. Is the FOXWELL HD500 suitable for a small repair shop?
It can be a good option for a small or medium-sized shop that regularly services heavy-duty diesel vehicles from different manufacturers.
The FOXWELL HD500 sits in a useful position in the heavy-duty diagnostic market. It offers significantly more functionality than a basic code reader but avoids the cost and manufacturer-specific restrictions of using multiple OEM diagnostic systems in a workshop.
Its combination of full-system diagnostics, DPF regeneration, live data monitoring, support for heavy-duty protocols, and multi-brand coverage makes it a valuable tool for independent technicians, smaller repair shops, and fleet maintenance teams.
