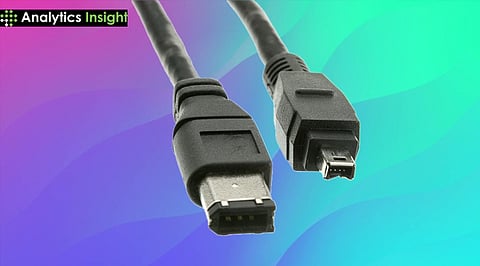

FireWire, also known as IEEE 1394, is a high-speed data transfer interface developed by Apple. It was commonly used to connect digital video cameras and external drives, offering real-time audio and video transmission. FireWire enabled fast, reliable data exchange, making it ideal for multimedia devices and professional video editing in the 2000s.
Before USB 3.0 and Thunderbolt, FireWire was a revolutionary solution for high-bandwidth applications. It supported faster transfer speeds than USB 1.1 and allowed peer-to-peer communication without requiring a host computer. This made FireWire especially important in industries like digital video production, where real-time data transfer and minimal latency were crucial.
FireWire operates as a serial communication interface that can transmit data at high speeds between devices. Key features include:
Daisy-Chaining: Up to 63 devices could be connected without a hub.
Plug and Play: Devices can be connected or disconnected without requiring a restart.
Isochronous Data Transfer: Ensured continuous and timely delivery, perfect for audio/video streams.
IEEE 1394a: Supported up to 400 Mbps.
IEEE 1394b: Increased speeds to 800 Mbps and allowed longer cable lengths.
High-speed transfers allowed for significantly faster data transmission compared to USB 1.1 and early USB 2.0, especially beneficial for large file transfers.
Real-time streaming was supported, enabling continuous and time-sensitive data flows without interruption.
Peer-to-peer connectivity enables devices to communicate directly with each other, eliminating the need to route data through a central PC.
Hot swappable functionality meant that devices could be plugged in or removed while the system was still running, with no need for rebooting.
Low CPU overhead minimized the use of system resources during data transfers, improving overall performance and multitasking efficiency.
Limited adoption meant that fewer consumer devices supported FireWire when compared to the more universally accepted USB standard.
The costly implementation made FireWire more expensive in terms of both hardware components and licensing fees, discouraging widespread adoption.
Short cable lengths restricted FireWire's practical range, especially in the IEEE 1394a version, which was a limitation in some setups.
FireWire was eventually replaced by newer technologies, such as USB 3.0 and Thunderbolt, which offered superior performance and broader compatibility.
Compatibility issues arose due to the presence of multiple FireWire variants, such as 1394a and 1394b, which often required specific adapters to connect different devices.
FireWire was primarily used for high-speed data transfer between devices such as digital camcorders, external hard drives, and professional audio interfaces.
At its time, FireWire offered faster sustained transfer speeds and lower CPU usage than USB 1.1 and early USB 2.0, making it ideal for multimedia use.
FireWire is largely obsolete, replaced by faster and more versatile technologies like USB 3.0, Thunderbolt, and USB-C.
No, FireWire and USB are electrically and logically incompatible, and direct conversion is not typically supported without specialized hardware.
Technologies like USB 3.0, Thunderbolt, and USB-C have taken over due to their higher speeds, better compatibility, and wider adoption.
Despite technical advantages, higher costs, and limited manufacturer support, and USB’s mass adoption led to FireWire’s decline.
