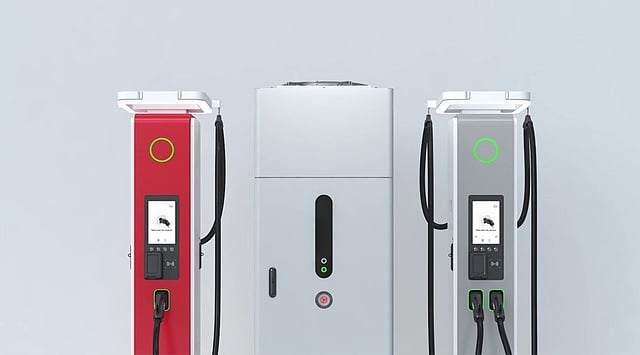

Unlike other ultra-fast EV charging technologies that focus on charging speeds, Huawei’s FusionCharge platform looks at the issue of grid infrastructure in conjunction with charging speeds. It uses its DC coupled battery technology, which is capable of delivering up to 720kW through 12 chargers from a grid source of around 50kW. It uses liquid cooled power units, dispensers, and cables to handle high currents, ensuring noise levels do not exceed 55dB. Huawei boasts of up to 96% efficiency in the system and 92.1% efficiency for the battery round trip.
Here are the Huawei FusionCharge EV Charger Specifications.
| General Specification | |
| Brand | Huawei |
| Platform | FusionCharge |
| Product Type | Ultra-fast DC EV Charging Platform |
| Primary Application | Electric Vehicle Charging Infrastructure |
| Grid Connection | Approximately 50kW |
| Maximum Charging Output | Up to 720kW |
| Number of Connectors | Up to 12 |
| Target Users | EV charging operators, fleet operators, logistics hubs and commercial charging networks |
| Design & Charging Specification | |
| Architecture | DC-coupled battery architecture |
| Cooling System | Liquid cooling |
| Voltage Range | 150V - 1,000V |
| Maximum Current | Up to 500A per connector |
| Maximum Current in Certain Configurations | Up to 800A |
| Power Distribution | Automated power-sharing |
| Charging Configuration | Modular |
| Ultra-Fast Charging Claim | Up to 125 miles of range in 5 minutes under compatible conditions |
| Heavy-Duty Application | Supported through megawatt-class configurations |
| Performance & Safety Specification | |
| System Efficiency | Up to 96% |
| Battery Round-Trip Efficiency | Approximately 92.1% |
| Noise Level | Below 55dB at 25°C |
| Service Life | Approximately 10 years |
| Safety Certification | TÜV certification |
| Power Management | Dynamic power allocation based on vehicle requirements |
| Environmental Protection | Enclosed liquid-cooled system designed to protect electronics from wet dust and salt fog |
| Battery & Connectivity Specification | |
| Battery Architecture | Integrated DC-coupled battery storage |
| Grid-to-Charger Architecture | Low-power grid connection with battery-supported peak charging |
| Power Storage Function | Supports peak power delivery to EVs |
| Charging Connectors | Up to 12 |
| Modularity | Modular architecture allowing future upgrades |
| Maximum Demonstrated Platform Output | Up to 720kW |
| Megawatt-Class Variant | 1,500kW field-testing reported in China |
| Other Features | Liquid-cooled cables, automated power sharing, ultra-fast charging and scalable charging infrastructure |
Here are the Pros and Cons of Huawei FusionCharge EV Charger.
| Pros | Cons |
|---|---|
| Up to 720kW charging capacity across 12 connectors. | 125-mile, five-minute charging depends on compatible EV batteries. |
| Can operate with a relatively low 50kW grid connection. | Most current EVs cannot accept the maximum charging power. |
| DC-coupled battery architecture can reduce conversion losses. | Large-scale deployment still depends on regulatory approval in some markets. |
| Liquid cooling supports high current levels and hardware longevity. | Battery storage adds system complexity and infrastructure cost. |
| Modular architecture allows charging capacity to scale over time. | Real-world charging speeds vary significantly by vehicle and battery conditions. |
What is special about Huawei FusionCharge is that its main value does not lie in the 720kW fast charge capability, but in the fact that it manages to deal with the shortcomings of the grid. With a DC-coupled battery system, operators manage to take a relatively small amount of energy from the grid, providing vehicles with a significantly larger amount of peak power. The platform benefits from liquid cooling, modularity and high efficiency features. The one drawback here is that the five-minute charge for 125 miles is not typical for most EVs at the moment due to many constraints.
