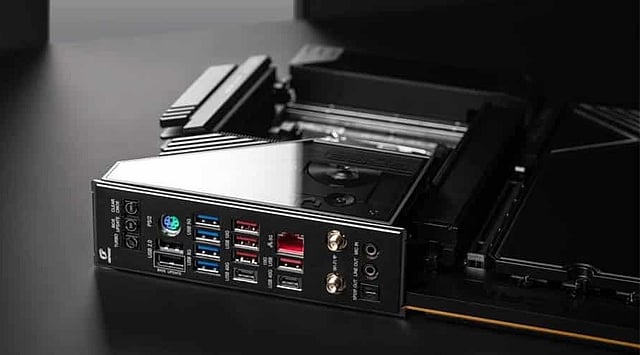

Colorful iGame X870E VULCAN OC V14 is a high-end AMD X870E motherboard that supports enthusiast-level users. It has a two-DIMM configuration, 18+2+2 power phases, built-in tuning controls, dual BIOS, and clock generator for overclocking purposes, and M.2 slots, WiFi 7, 5GbE, USB4, and built-in LCD panel for top-class connectivity. But its specialized features might not be necessary for mainstream users.
Here are the Colorful iGame X870E VULCAN OC V14 Specifications.
| General Specification | |
| Brand | Colorful |
| Model | iGame X870E VULCAN OC V14 |
| Chipset | AMD X870E |
| CPU Socket | AMD AM5 |
| CPU Support | AMD Ryzen 7000, 8000 & 9000 Series |
| Form Factor | ATX |
| Memory | 2 × DDR5 DIMM Slots, up to 128GB |
| Target Users | Enthusiast PC builders, competitive overclockers, gamers and high-performance workstation users |
| Design & Build Specifications | |
| Form Factor | ATX |
| PCB | 10-Layer Black PCB |
| Dimensions | Approximately 305 × 245mm |
| Cooling | Large Finned VRM Heatsinks with Heatpipe and Extensive M.2 Cooling |
| Build Features | Integrated Backplate, M.2 Armour and Onboard LCD |
| Lighting | Integrated RGB Accent Lighting |
| Performance, Memory & Connectivity Specifications | |
| Specification | Details |
| Memory Support | Up to 128GB DDR5, with speeds beyond DDR5-8600 and extreme OC support up to DDR5-10000+ |
| Storage | 5 × M.2 Slots, including 3 × PCIe 5.0 x4 |
| Networking | 5GbE Ethernet and Wi-Fi 7 |
| Connectivity | 2 × USB4 40Gbps Type-C, USB 3.2 and USB 2.0 |
| Expansion | PCIe 5.0 x16 Graphics Slot |
| Audio | Realtek ALC1220 with ESS DAC |
| Key Overclocking Features | |
| Memory Layout | Two-DIMM design for improved signal integrity and high-speed DDR5 tuning |
| Clock Control | External Clock Generator and Physical Base-Clock Adjustment Controls |
| Recovery Tools | Safe Boot and Retry Buttons |
| Extreme OC Features | LN2 Mode and Slow Mode |
| BIOS | Dual BIOS |
| Monitoring | Onboard Voltage Measurement Points |
Here are the Pros and Cons of Colorful iGame X870E VULCAN OC V14
| Pros | Cons |
| Good option for serious overclocking and performance tuning | Overkill for most mainstream PC users |
| Strong cooling and power delivery for demanding processors | Limited memory expansion compared to four-slot motherboards |
| Plenty of high-speed storage options | Heavy design may require extra care during installation |
| Fast and modern wired and wireless connectivity | Faces strong competition from more established motherboard brands |
| High-quality build with an integrated display | High-end positioning makes it difficult to justify for regular gaming builds |
The Colorful iGame X870E VULCAN OC V14 is a top-end motherboard which has high-end overclocking infrastructure for the CPU and DDR5 along with all the connectivity features one would expect from a flagship motherboard. The dual-channel memory system, physical tuning options, high-power VRM, five M.2 slots, Wi-Fi 7, 5GbE, USB4, and LCD display all make this motherboard especially appealing for enthusiast builds; however, its niche-oriented design means it might not be the right choice for mainstream use.
