Automated deburring cells are often judged by cycle time, but consistent edge quality can be harder to maintain. A cell may remove the visible burr while producing different edge radii as the incoming burr, brush condition, or setup changes. That variation can affect assembly, coating, handling safety, and part appearance.
Disc brushes are useful when multiple exposed burrs can be reached from a common plane. Repeatability depends on the complete system: brush geometry, filament construction, mounting accuracy, machine settings, wear control, and inspection.
Removing a loose burr, breaking a sharp edge, producing a defined radius, and preparing a surface for coating are different requirements. Specify the required result before selecting the brush.
Workpiece material and hardness.
Burr size, root thickness, location, and direction.
Edges to be treated and surfaces to be protected.
Target edge condition or radius, including its tolerance.
Limits on material removal, scratches, contamination, and surface roughness.
Disc brushes can treat several exposed edges during one pass, making them useful for suitable stamped, blanked, milled, or cut parts. However, they are not substitutes for tools designed to reach deep bores or shielded features. Weiler’s automated deburring guide distinguishes these applications when discussing disc, cup, end, and tube brushes.
Outside diameter affects coverage and peripheral speed at a given RPM. The working face must reach the intended edges without contacting clamps, fixtures, or protected surfaces.
Diameter should therefore be considered together with trim length, mounting dimensions, abrasive construction, and permitted speed. Osborn’s ATB disc-brush specifications present these variables together rather than treating diameter as a complete specification.
A larger brush may cover more of the part, but it is not automatically better for restricted clearances, narrow features, or changes in surface height.
Longer free trim generally allows greater flexibility, while shorter trim generally provides firmer contact. The result also depends on filament diameter, abrasive loading, density, and interference—the amount of engagement between the brush and workpiece.
The brush needs enough compliance to follow the part while maintaining effective contact with the burr. Excessive interference can increase heat, filament deflection, and unwanted material removal.
Gerber’s process notes identify infeed depth, rotational speed, brushing time, bristle type, and density as interacting variables that influence edge rounding.
Filament density changes the number of contact points and how the load is distributed. Dense fill can support stable contact, while a more open arrangement can provide clearance for debris and coolant.
Tufted, full-fill, and segmented patterns also differ in flexibility and coverage. Select the arrangement around the part geometry and required brushing action, rather than assuming that maximum density will always produce the best result.
An incorrect bore or loose mounting interface can undermine an otherwise suitable brush specification. Axial runout can cause cyclic variation in contact depth, while imbalance may introduce vibration and reduce process stability.
Confirm the arbor or holder interface, base construction, clearance, rotation direction, and permitted operating speed. Where runout or balance requirements are important to the process, agree on the relevant inspection criteria before production.
Abrasive nylon combines cutting action with flexibility. Available abrasive systems include silicon carbide, aluminum oxide, ceramic, and diamond, but mineral name and grit alone do not determine the result.
Filament diameter, trim, density, and operating conditions can make two brushes with the same nominal grit behave differently. More aggressive constructions may remove burrs faster but can also increase edge rounding, surface marking, or unwanted material removal.
Approve the filament construction and brush geometry together, using representative parts and the required surface finish as the reference.

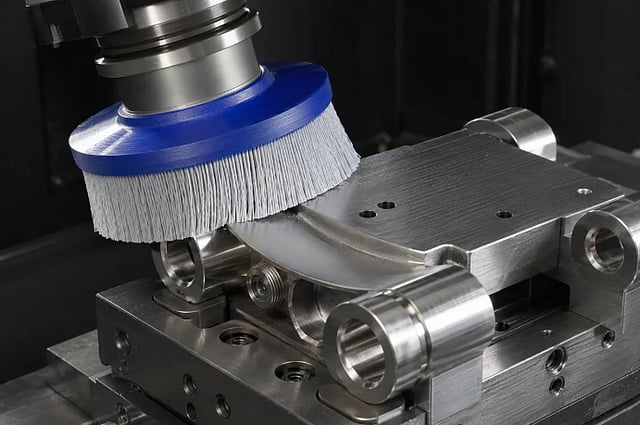

Reaching the workpiece is not the same as engaging the burr effectively. Brush position and movement must allow the filaments to sweep across the target edges without missing shielded areas or contacting protected features.
For CNC disc-brush applications, Weiler’s Nylox usage guidance describes offsetting the brush centreline from the original cutting-tool path to improve contact with burred edges. The suitable path depends on the component and brush; there is no universal offset for every application.
Other important settings include RPM, feed rate, dwell time, interference, rotation direction, and coolant conditions. Published recommendations are starting points for trials, not universal production recipes. The brush and mounting assembly must remain within their permitted operating limits.
During initial trials, change one variable at a time and record the result. This makes it easier to identify which adjustment improves burr removal or causes unwanted marking.
Cycle count alone does not show whether a brush still produces the approved edge.
For a face-working disc brush, wear typically reduces the free trim length. This changes filament stiffness and the contact setting, so wear control should focus on brush length, tool offset, and the resulting edge condition—not assume that wear primarily reduces the outside diameter.
Where the equipment supports it, tool-length measurement can help compensate for wear. WEBER describes automatic tool-length measurement in its finishing systems. Other cells may use scheduled offset checks and first-part inspection.
Compensation does not eliminate the need for inspection. Record accepted parts per brush, adjustment history, spindle-load trends where available, and periodic edge measurements. Set the replacement limit around the approved result and the brush manufacturer’s usable-trim limits.
Check representative parts across the expected incoming burr range.
Record the approved brush specification, tool path, and machine settings.
Inspect parts from the beginning, middle, and end of the trial.
Measure edge radius or edge condition using the agreed method.
Check protected surfaces for scratches, rollover, or unwanted material removal.
Repeat the inspection after a defined amount of brush wear.
The acceptance plan should identify the measurement method, sampling frequency, and tolerance. One acceptable sample does not demonstrate that the process will remain consistent across normal burr variation and brush wear.
For an initial review, provide a part drawing or sample, the burr and target edge condition, machine mounting details, available operating information, and the expected quantity. Missing brush details can then be resolved through drawing review and sample trials.
For OEM and replacement projects, Brushcustom’s custom disc brushes can be configured around the workpiece, mounting interface, and abrasive requirement. Keeping the approved brush drawing alongside the validated process settings gives repeat orders a clear reference while recognising that consistent edge quality depends on the complete cell.
