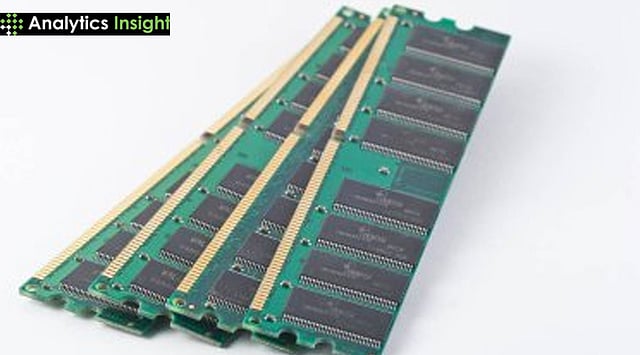

A Dual In-line Memory Module (DIMM) is a small circuit board that houses memory chips and is installed on a computer’s motherboard. Unlike Single In-line Memory Modules (SIMMs), DIMMs have separate electrical contacts on each side, which doubles the data transfer width. They are primarily used to provide dynamic random-access memory (DRAM) for personal computers, servers, and workstations. Modern DIMMs utilize 240-pin or 288-pin connectors to enhance data throughput.
Unbuffered DIMM (UDIMM): Also known as unregistered memory, this type is commonly found in laptops and desktop computers. UDIMMs are faster and less expensive but less stable than registered DIMMs. In this type, the memory controller sends instructions directly to the memory module.
Fully-Buffered DIMM (FB-DIMM): Used in systems requiring large amounts of memory, such as servers and workstations. FB-DIMMs utilize an advanced memory buffer (AMB) chip located between the memory module and the memory controller to improve reliability and maintain signal integrity.
Registered DIMM (RDIMM): Also known as buffered DIMM, it is frequently used in servers and applications that demand reliability and robustness. RDIMMs contain a register between the DRAM modules and the system’s memory controller. While more expensive due to the extra circuit, they are suitable for servers.
Load-Reduced DIMM (LRDIMM): This type of DIMM uses a memory buffer chip to reduce the load on the memory controller and increase memory speed. LRDIMMs also help in reducing power consumption.
SO-DIMM: Small Outline Dual In-Line Memory Module, used in devices with limited space, such as laptops and tablets. SO-DIMMs are available in 72-pin and 144-pin configurations1. Laptop PCs typically require a smaller 67.6 mm (2.66 in) SO-DIMM.
DIMMs are designed to provide faster data transfer rates compared to their predecessors, the Single In-Line Memory Modules (SIMMs). The dual-sided pin connection allows DIMMs to achieve a native 64-bit data path, effectively doubling the data transfer capabilities. This design is essential for modern applications that require high-speed data processing, such as gaming, video editing, and scientific computing. The ability to handle larger amounts of data efficiently directly impacts overall system performance and responsiveness.
Over the years, DIMM technology has evolved significantly, leading to substantial increases in memory capacity. Initially, DIMMs offered megabyte-scale capacities, but advancements in semiconductor technology have enabled current modules to support gigabytes or even terabytes of data. This increase is vital for handling the growing demands of applications involving big data analytics, artificial intelligence (AI), and high-definition video processing. As software becomes more resource-intensive, the need for larger memory capacities continues to rise.
DIMMs are versatile and are used across various computing environments:
Personal Computers: DIMMs are essential for both desktops and laptops, providing the necessary temporary storage for the CPU to quickly access and process data.
Servers: In server environments, DIMMs are critical for managing multiple operations simultaneously. Server DIMMs often include Error-Correcting Code (ECC) to detect and correct data corruption, enhancing reliability and uptime.
Workstations: High-performance workstations used for graphic design or scientific computing rely on DIMMs for substantial memory capacity and speed.
Gaming Consoles: Modern gaming consoles utilize DIMM technology to meet the demanding memory requirements of contemporary video games, ensuring quick loading times and smooth gameplay.
Data Centers: In data centers that support cloud computing and big data processing, DIMMs provide the necessary memory resources for efficient operation.
Advancements in DIMM technology have also led to improved power efficiency. Modern DIMMs typically operate at lower voltages (e.g., 3.3 volts) compared to older technologies like SIMMs (which require 5 volts). This reduction in power consumption is particularly important in server environments where energy costs can be significant. Efficient power usage not only lowers operational costs but also contributes to greener computing practices.
DIMMs support various advanced features that enhance system performance:
Multi-Channel Configurations: Many systems utilize dual-channel or quad-channel configurations with DIMMs, which allow for increased memory bandwidth by spreading data across multiple modules. This configuration is particularly beneficial for high-performance applications.
Error Correction: ECC DIMMs provide error correction capabilities that improve system stability by detecting and correcting memory errors on-the-fly. This feature is critical in environments where data integrity is paramount, such as servers and workstations used for scientific research or financial transactions.
Compatibility with New Standards: DIMM technology continues to evolve with new standards like DDR4 and DDR5, offering improved speeds and efficiencies that meet the demands of modern applications. These advancements ensure that systems remain competitive and capable of handling future workloads.
Personal Computers (PCs): DIMMs are a fundamental part of both desktop and laptop computers, acting as the primary temporary storage for the CPU to swiftly store and retrieve data.
Servers: In servers, DIMM technology is essential for handling numerous operations and massive volumes of data simultaneously. Server DIMMs frequently have Error-Correcting Code (ECC) to detect and correct data corruption, ensuring high reliability and uptime. Registered DIMMs (RDIMM) are often used in servers to ensure a stable electrical load and offer more server application scalability.
Workstations: Workstations intended for graphic design, scientific computing, and film editing require DIMMs for high-speed data processing and substantial memory capacity.
Gaming Consoles: High-performance gaming consoles use DIMM technology to meet the memory requirements of contemporary video games, ensuring quick loading times and fluid gameplay.
Networking Equipment: Network equipment like switches, firewalls, and routers use DIMMs to effectively handle high traffic volumes, enhancing network efficiency and stability.
Embedded Systems: DIMMs are utilized in embedded systems for industrial applications, automotive controls, and telecommunications equipment, benefiting from the robust and reliable memory solutions DIMM technology provides.
Data Centers: Data centers that support big data analytics and cloud computing use DIMM technology to supply the memory resources demanded for virtual environments and big data processing jobs.
High-Performance Computing (HPC): DIMMs provide high bandwidth and low latency memory access for high-performance computing (HPC) systems that reuse enormous datasets and sophisticated computations in scientific exploration, simulation, and financial modeling.
Consumer Electronics: Several cutting-edge electronics, such as smart TVs and digital cameras, use DIMM technology to support intricate features and enhance performance.
Artificial Intelligence (AI) and Machine Learning (ML) Systems: AI and ML systems demand large memory resources for training and conclusion processes. DIMMs offer the speed and capacity required to support these demanding operations.
Virtualization: In virtualized environments where multiple virtual machines (VMs) run on a single physical server, DIMMs are critical in allocating memory to each VM to ensure efficient and reliable operation.
The primary difference between DIMMs and SIMMs lies in their design and functionality. DIMMs have separate electrical contacts on both sides of the module, allowing for increased data transfer rates and larger memory capacities. In contrast, SIMMs have a single set of contacts, which limits their performance and requires them to be installed in pairs to achieve 64-bit data paths.
DIMMs play a crucial role in enhancing overall computer performance by providing quick access to data that the CPU actively uses. They allow for efficient multitasking and reduce application loading times, which is vital for demanding applications such as gaming, video editing, and data processing.
DIMMs provide several advantages over older technologies like SIMMs:
Higher Data Transfer Rates: The dual-sided design allows for a 64-bit data path, effectively doubling the throughput compared to SIMMs.
Increased Capacity: Modern DIMMs support larger memory capacities, essential for running resource-intensive applications.
Power Efficiency: DIMMs typically operate at lower voltages (e.g., 3.3 volts), making them more energy-efficient than older memory types.
Mixing different types of DIMMs can lead to compatibility issues. It's generally recommended to use identical modules (same type, speed, and capacity) to ensure optimal performance and stability. Some motherboards may support mixed configurations but may operate at the lowest common denominator among the installed modules.
